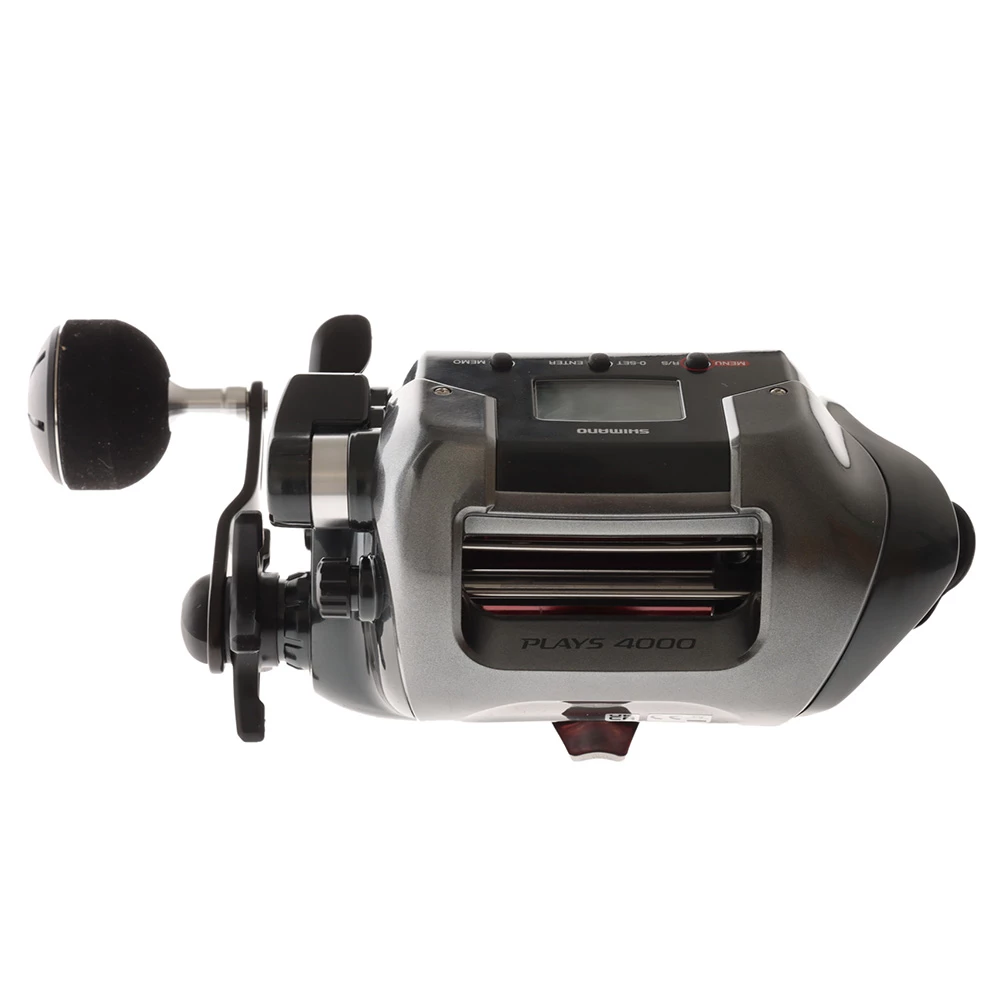

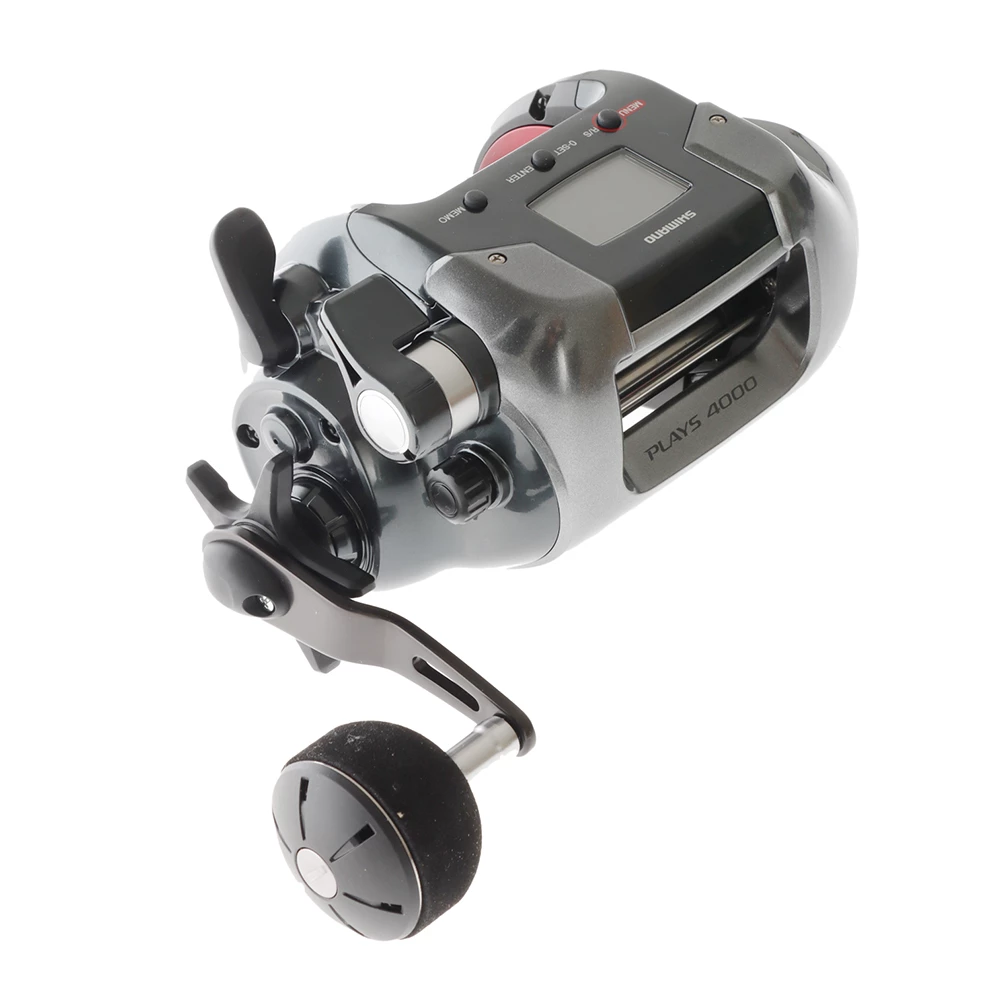

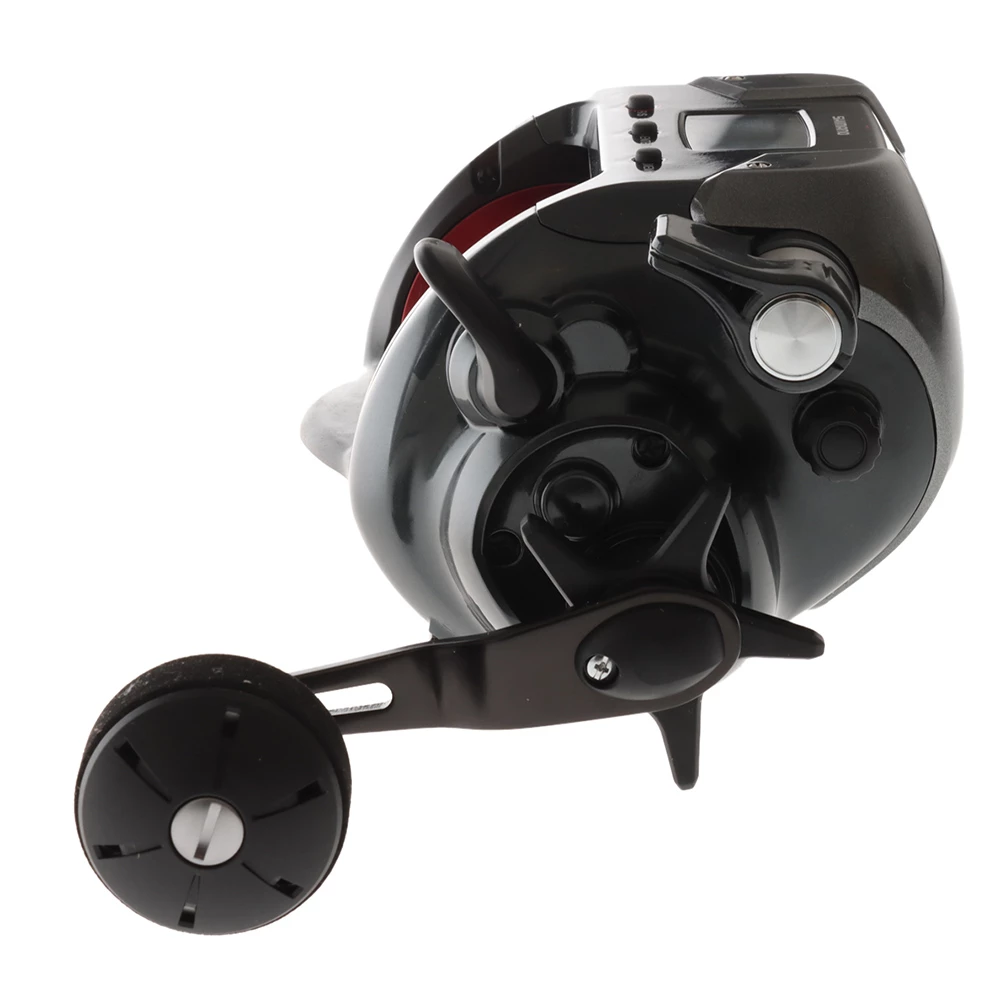

Shimano Dendou Maru Plays 4000 Electric Reel

The ideal reel for the deep water fisho

The new and improved Shimano Dendou Maru Plays 4000
Electric Reel is now designed with HAGANE BODY technology
meaning more rigid tolerances and a stronger frame that reduces
twist under load. The Plays 4000 also features the Heat Free System
that greatly reduces heat under load and keeps the reel performing.
The large Fine Dot LCD screen improves readibility in most light
conditions. Precision S-ARB bearings and Super Free Spool
technology to reduce friction and heat when dropping baits in to
the benthos.

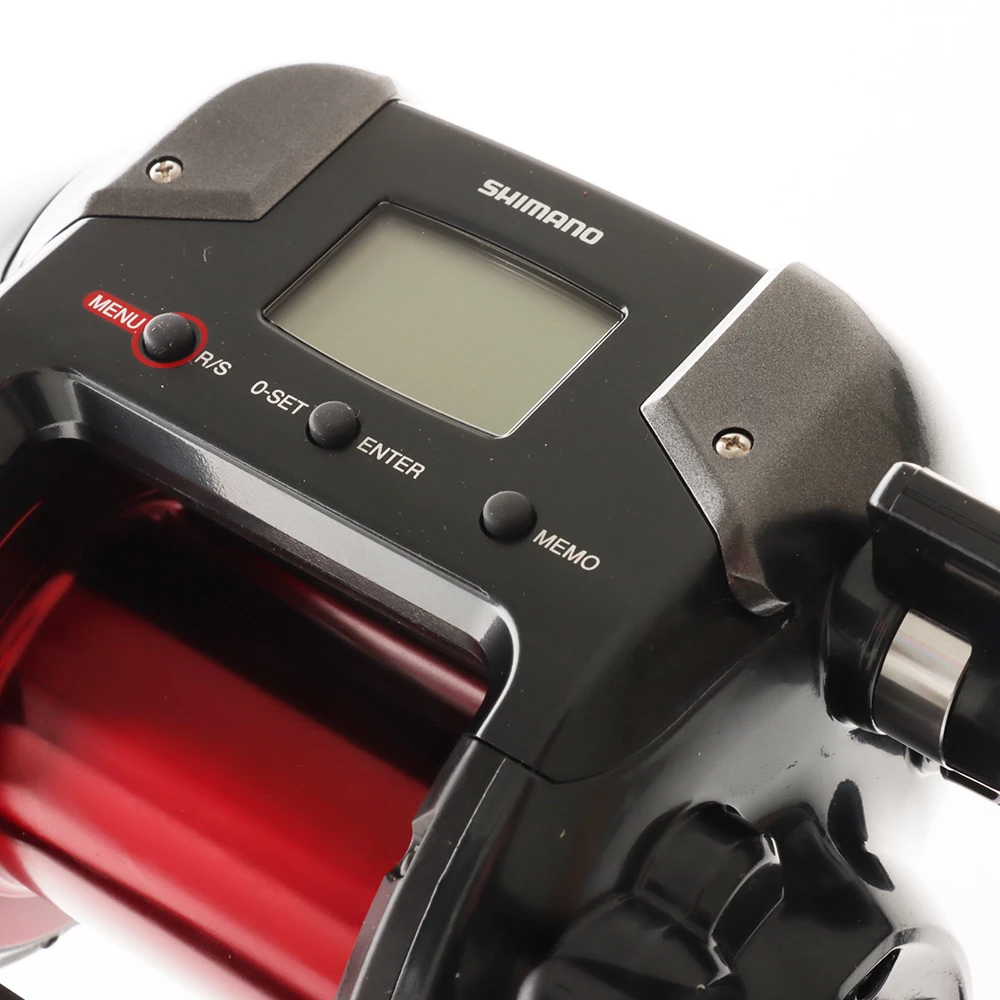

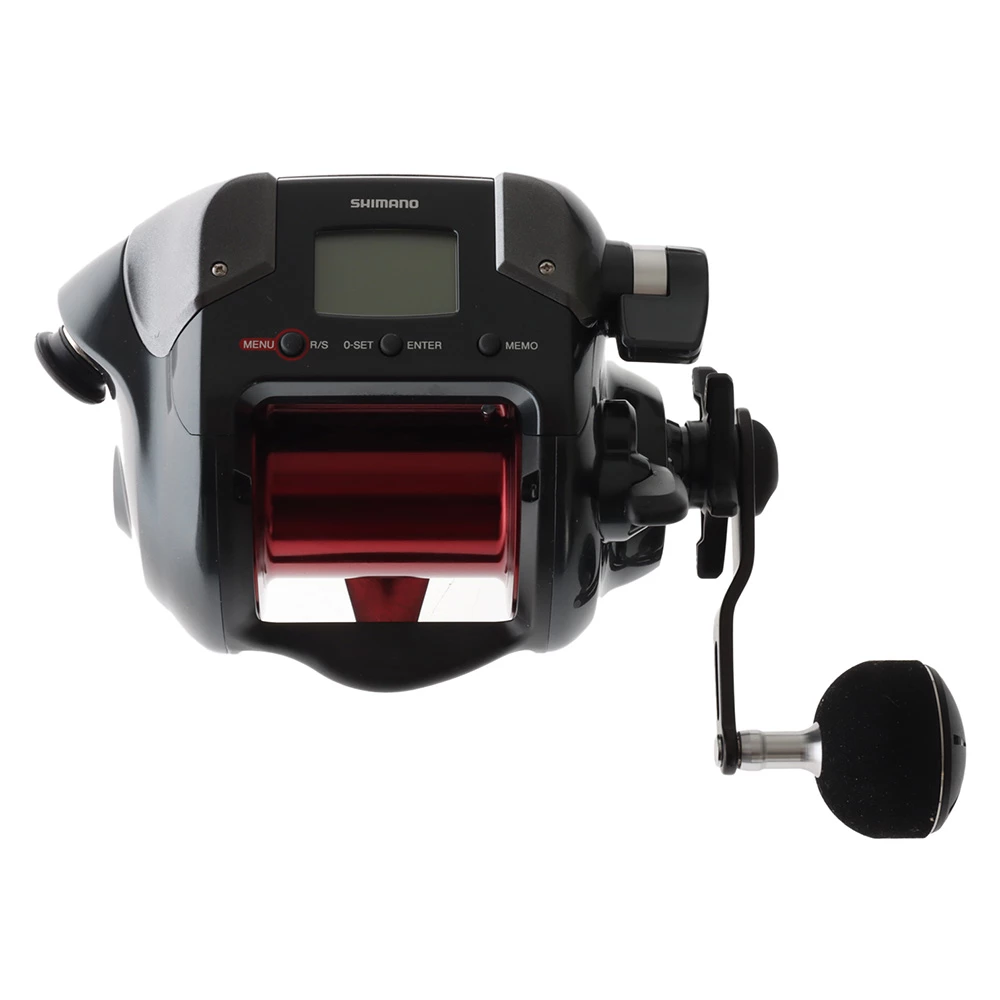

LCD On-Screen Display
Large LCD Display with on-screen information such as program,
lineout, power and other relevant information.

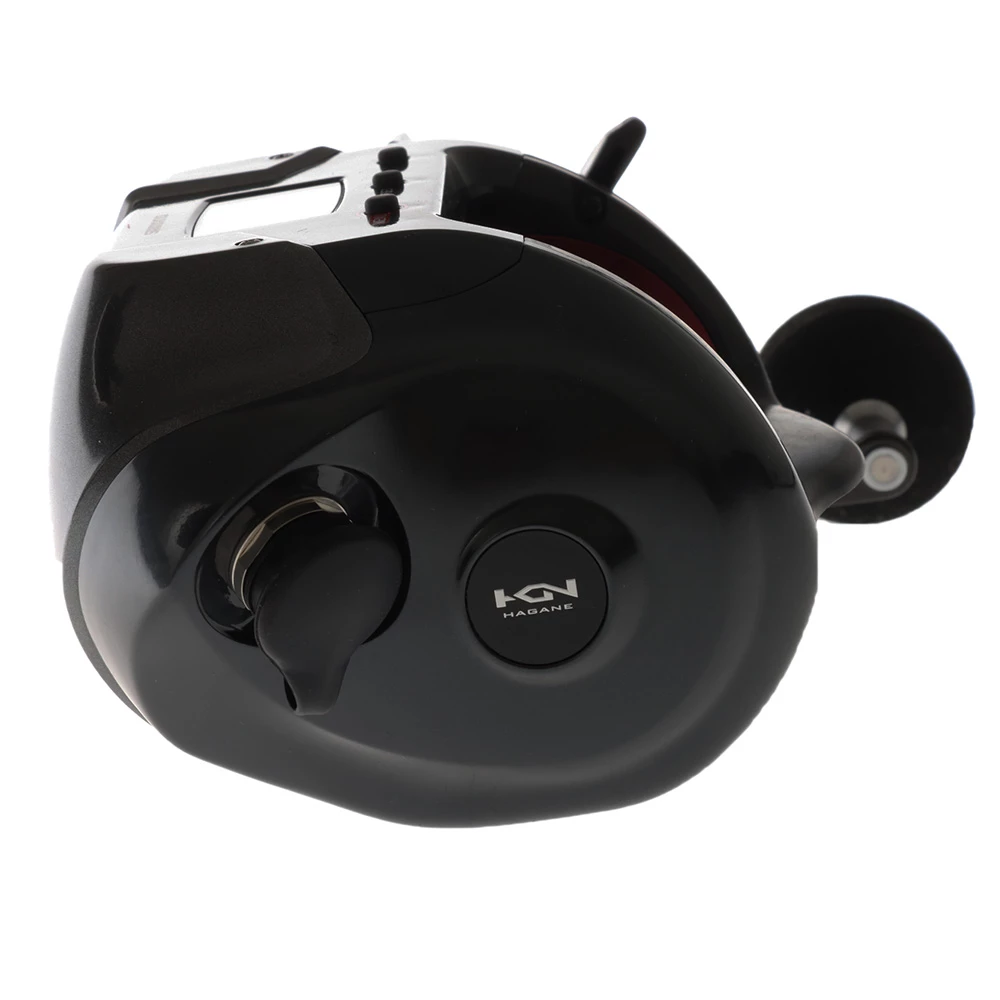

HAGANE Body
HAGANE Body means this reel has a high rigidity and zero twist. The
body stiffness and impact resistance virtually eliminates body
flexing. The result transforms the anglers actions directly into
cranking power. It’s efficiency through strength.

Shielded Anti-Reverse Bearings
These bearings have been through the same process as the A-RB
bearings, but feature shields on both sides of the bearings that
reduce the possibility of salt or sand inhibiting the bearings’
rotation.

Super Free
The Super Free bearing-supported pinion gear system (SF) was
designed to eliminate friction on the spool shaft during the cast.
In standard baitcasting reels, when the clutch bar is pressed down,
the pinion gear is freed and can actually drag on the spool shaft,
creating friction and limiting the length of the cast. With SF, the
pinion gear is supported by a ball bearing and when the clutch is
disengaged the pinion hear and spool shaft are kept in precise
alignment. The result is zero friction on the spool shaft for
increased freespool.

Shimano Dendou Maru Plays 4000 Electric Reel
Features:

• Hagane Body
• Carbon Drag
• Heat Free System
• Jigging Mode
• Memo
• Auto Stop
• Alarm
• Maximum Winding Strength: 50kg
• Maximum Winding Speed: 170m

Shimano Dendou Maru Plays 4000 Electric Reel

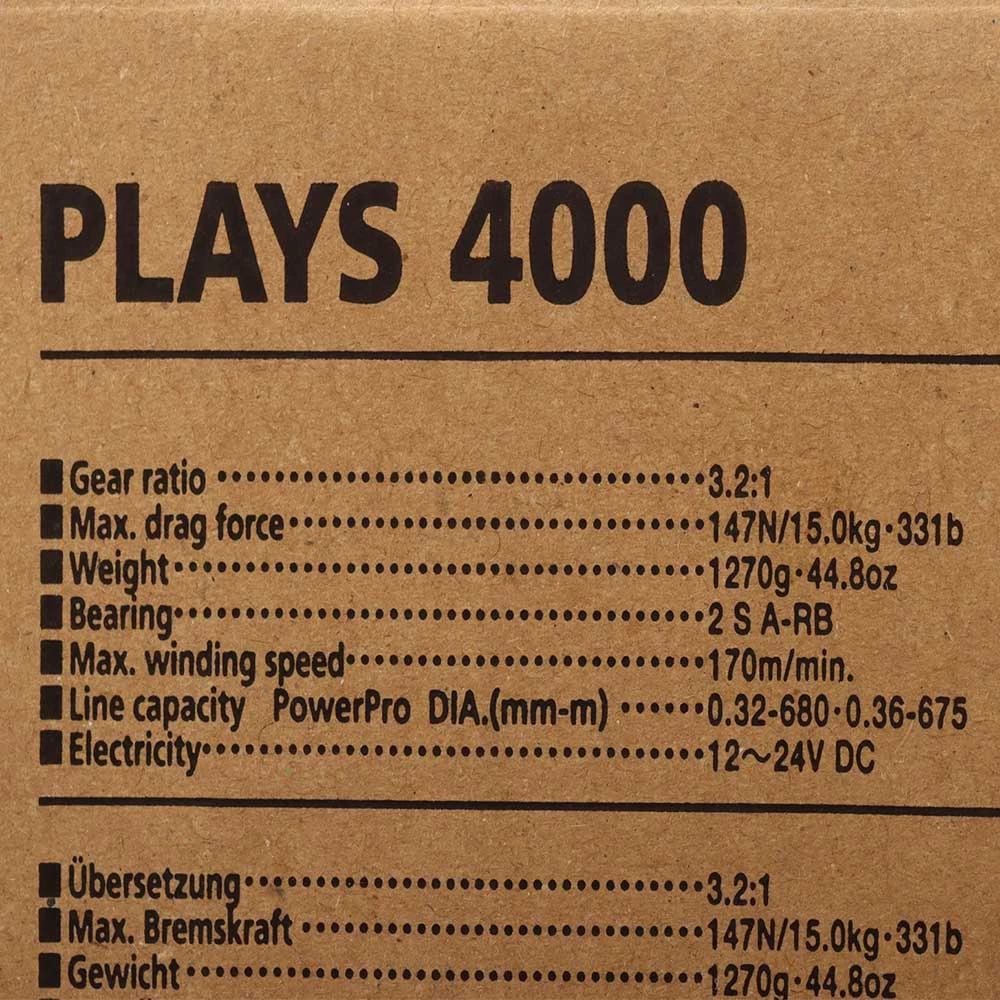

Specifications:

• Model: PLAYS4000
• Retrieve per Crank: 68cm
• Ball Bearings: 2 SA-RB
• Max Drag: 15kg/147.0N
• Drag Type: STAR
• Weight: 1230g
• Line Capacity: PE #6 (60lb)-500m, #8 (80lb)-300m,
  #10(100lb)-270m
• PowerPro Capacity: 60lbs (550yds)
• Gear Ratio: 3.2:1

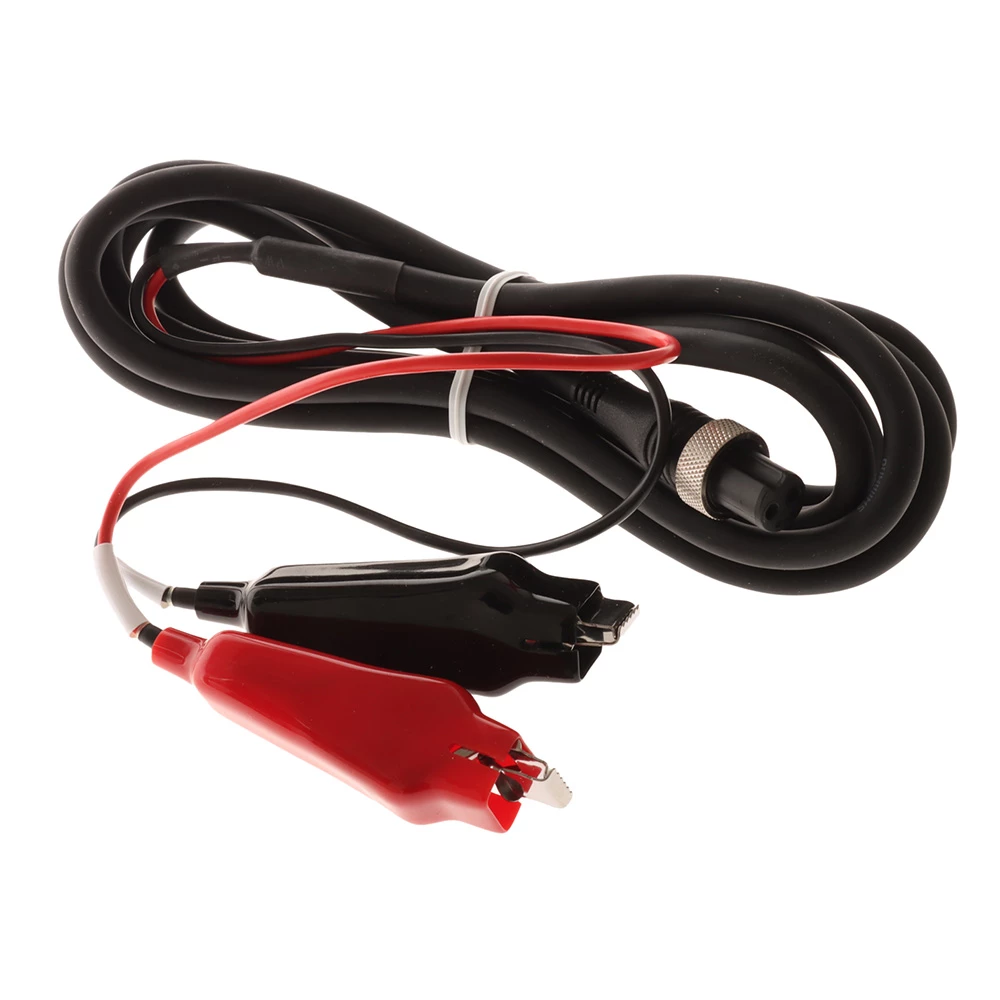

• DC: 12v

Note: JDM (Japanese Domestic Market) Shimano
Electric Reels do not come supplied with English manual as they are
originally intended to be sold for the Japanese market only.
Battery sold separately.
